PEB

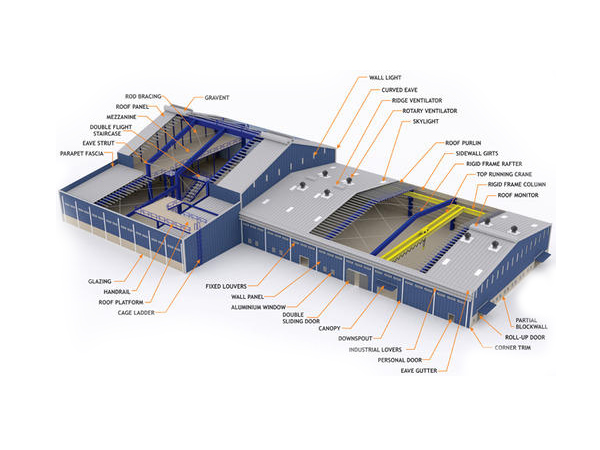

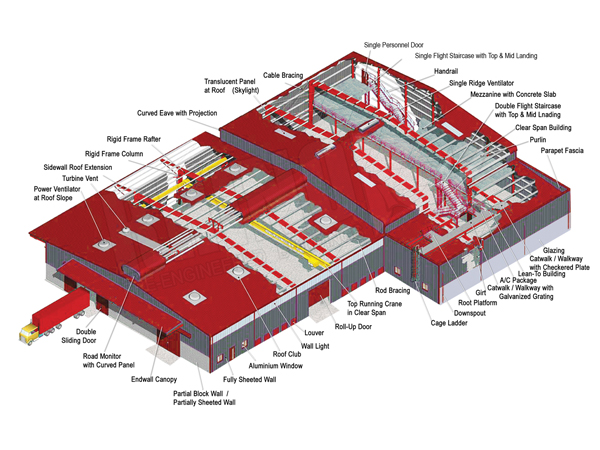

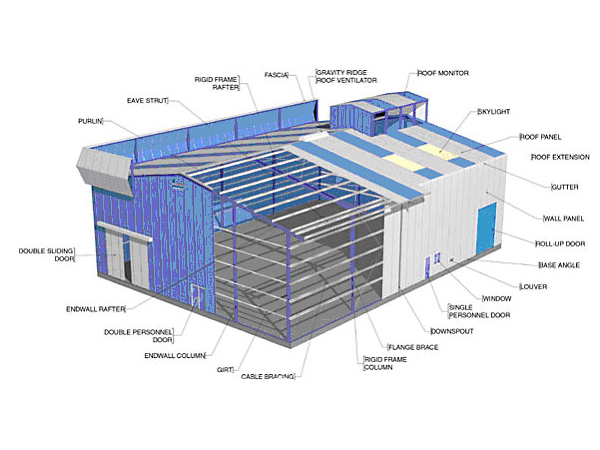

Our Pre Engineering Building consist following.

H/I Beams H/I Beams in the PEB industry often refer to primary built-up members. Primary members consist of columns, rafters, beams etc. These are fabricated from high strength Gr. 50 HR plates. Plates are cut to size and shape. Built up sections are made from these plates in Automatic Beam Welding Line by submerged arc welding.

Primary structural framing shall refer to the transverse rigid frames, lean to rafters and column, canopy rafters, columns (beams and column frames), bearing frame rafters and corner columns, and end wall wind columns.

Members fabricated from plate or bar stock shall have flanges and webs joined on one side of the web by a continuous welding process. This plate or bar stock shall have minimum yield strength of 345 mn/m2 (50,000 psi) and will conform to the physical specifications of ASTM A572 grade 50.

Members fabricated by cold forming process shall have minimum yield strength of 345 mn/m (50000 psi) and will conform to the physical specifications of ASTM A-607 (grade 52) or equivalent
